TRIUMPH TR6
PLATE EM
GAUGES, DASH SWITCHES, AND
CONTROLS, 1969 UP TO 1972
V2-22

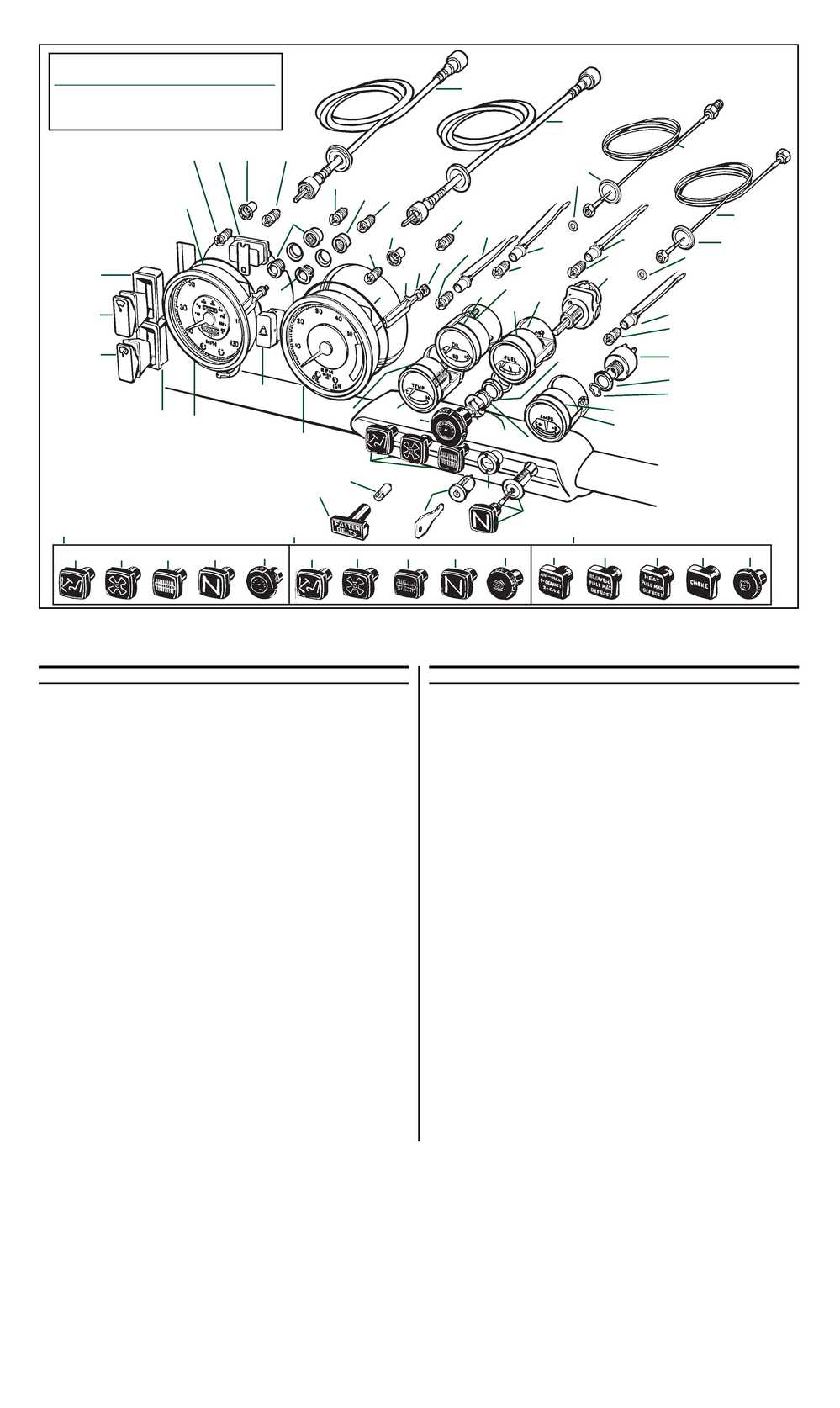

GAUGES, DASH SWITCHES, AND CONTROLS, 1969 UP TO 1972
GAUGES
SPEEDOMETER DETAILS
SPEEDOMETER,
calibrated in miles, fitted to carb
1
models up to comm. no. CF1 (3.7:1 rear axles)
Rebuilt Unit
1
SPEEDOMETER,
calibrated in kilometers, fitted to
1
carb models up to comm. no. CF1 (3.7:1 rear
axles)
Rebuilt Unit
1
SPEEDOMETER,
calibrated in miles, fitted to P.I.
1
models up to comm. no. CR1 (3.45:1 rear axles)
Rebuilt Unit
1
SPEEDOMETER,
calibrated in kilometers, fitted to P.I.
1
models up to comm. no. CR1 (3.45:1 rear axles)
Rebuilt Unit
1
Gasket,
rubber, between speedometer and dash
1
Voltage Stabilizer
1
Bulbholder,
speedometer illumination
2
Bulb,
speedometer illumination
2
Bulb,
high-beam and turn-signal warning lamps
2
Speedometer Cables
(See Section EP.)
1
TACHOMETER DETAILS
214263
TACHOMETER (REVOLUTION COUNTER),
fitted to all
1
models up to comm. nos. CF1 and CR1
Rebuilt Unit
1
Gasket,
rubber, between tachometer and dash
1
Bulbholder,
tachometer illumination
2
Bulb,
tachometer illumination
2
Bulb,
oil-pressure and ignition warning lamps
2
Tachometer Cables
(See Section EP.)
1
WATER-TEMPERATURE GAUGE DETAILS
147963
GAUGE,
water temperature, fitted up to comm. nos.
1
CF1 and CR1
Rebuilt Unit
1
Gasket,
rubber, between temperature gauge and
1
dash
LUCAB301
Bulbholder,
gauge illumination
1
Bulb,
gauge illumination
1
Plate No.
Part No.
Description
No. Off
GAUGES--Continued
FUEL LEVEL GAUGE DETAILS
147961
GAUGE,
fuel level, fitted up to comm. nos. CF1 and
1
CR1
Rebuilt Unit
1
Gasket,
rubber, between fuel-level gauge and dash
1
LUCAB301
Bulbholder,
gauge illumination
2
Bulb,
gauge illumination
2
OIL-PRESSURE GAUGE DETAILS
GAUGE,
engine oil pressure, fitted up to comm. nos.
1
CF1 and CR1
Rebuilt Unit
1
Gasket,
rubber, between oil pressure gauge and dash
1
LUCAB301
Bulbholder,
gauge illumination
1
Bulb,
gauge illumination
1
Pipe Assembly,
oil pressure gauge to engine oil
1
gallery, female fitting at engine-end of pipe
assembly, fitted to all carb models
Pipe Assembly,
oil pressure gauge to engine oil
1
gallery, male fitting at engine-end of pipe
assembly, fitted to all P.I. models
Washer,
leather, sealing connection between pipe
1
and oil pressure gauge
Grommet,
rubber, oil pressure pipe to bulkhead
1
HARDWARE,
securing pipe to bulkhead shelf; may
not have been used on all models
Clip
1
Screw,
self-tapping
1
AMMETER DETAILS
151272
AMMETER,
fitted up to comm. nos. CF1 and CR1
1
Rebuilt Unit
1
Gasket,
rubber, between ammeter and dash
1
LUCAB301
Bulbholder,
gauge illumination
1
Bulb,
gauge illumination
1
MISCELLANEOUS ADDITIONAL DETAILS
Clamp,
shovel-type, used on various gauges
A/R
Washer,
lock, securing shovel-clamps
A/R
620848
Nut,
knurled, securing gauges, smaller size
A/R
Nut,
knurled, securing gauges, larger size
A/R
Gasket Set,
gauges to dash, including two larger
1
gaskets and four smaller gaskets
(Continued on next page.)
