TRIUMPH TR6
PLATE EU
MISCELLANEOUS ELECTRICAL
COMPONENTS
V2-32
MISCELLANEOUS ELECTRICAL COMPONENTS

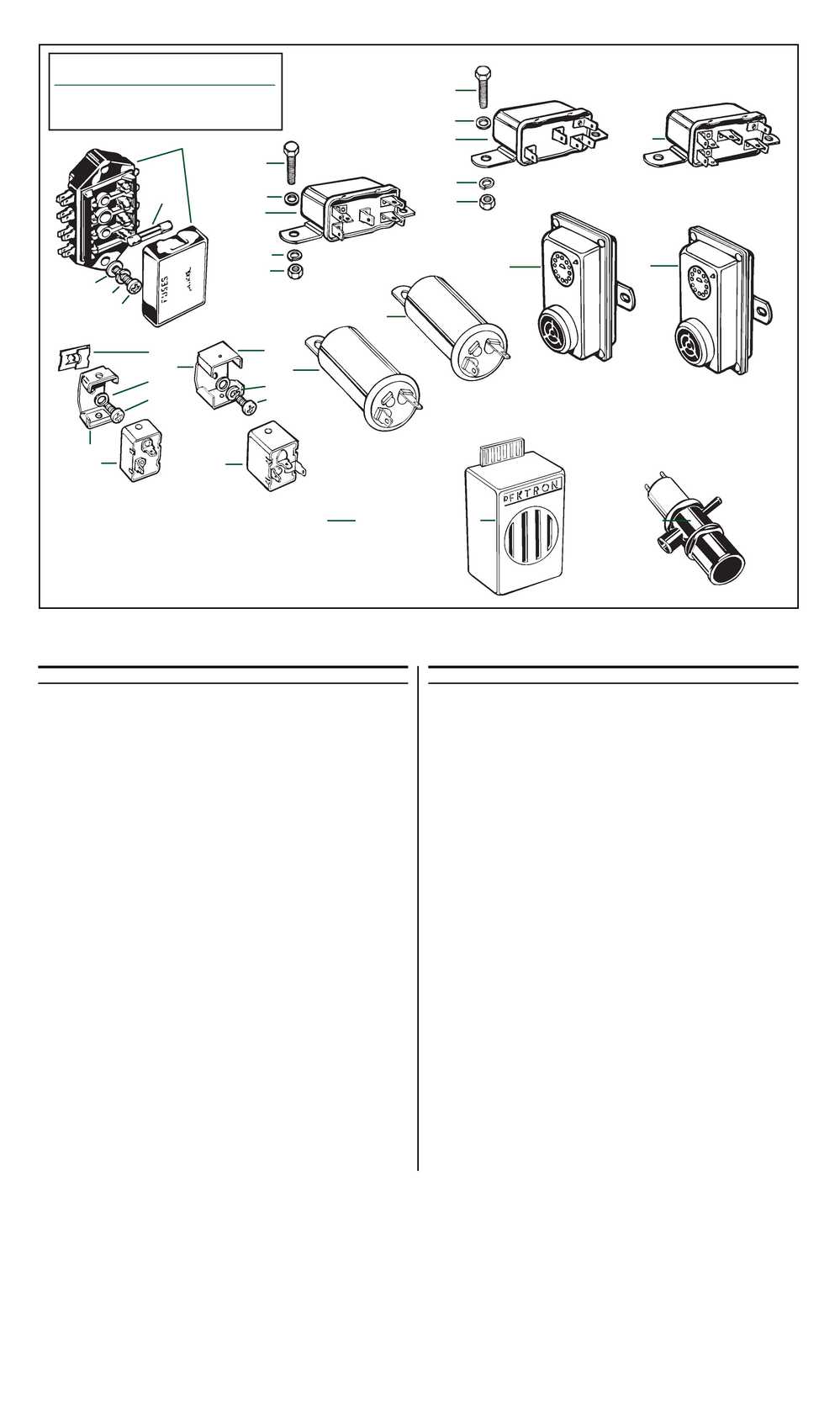

FUSE BOX DETAILS
FUSE BOX ASSEMBLY
1
Cover,
fuse box
1
Fuse,
35 amp, Lucas brand (four fitted and two spares)
A/R
HARDWARE,
securing fuse box to L.H. front inner fender
panel
PX512
Screw,
set
2
Washer,
lock
2
Washer,
plain
2
RELAYS
Please Note:
When ordering a relay, quote the Lucas
part number found on the old unit. This is usually a
six-character number beginning with `'3'' and
ending with an alphabetical suffix. Please also
note that Lucas has now changed the appearance
of most of its relays.
HAZARD RELAYS,
apparently fitted to all non-U.S.
models with L.H.S. and to U.S. models up to
comm. no. CC75000 or possibly up to comm. no.
CF1
Relay,
hazard warning system
1
HARDWARE,
securing hazard relay to mounting
bracket on L.H. front inner fender panel
Screw,
set
2
Washer,
plain
2
Washer,
lock
2
Nut,
hex
2
HORN RELAYS,
apparently fitted to all U.S. models after
comm. no. CF1 or possibly as early as CC75000
Relay,
horn
1
HARDWARE,
securing horn relay to upper side of
mounting bracket on L.H. front inner fender
panel
Screw,
set
2
Washer,
plain
2
Washer,
lock
2
Nut
2
STARTER RELAYS,
fitted to U.S.A. models after comm.
no. CF12500
Relay,
starter
1
Please Note:
the starter relay is secured to the
mounting bracket on the L.H. front inner fender
panel with the same hardware which secures
the horn relay.
Plate No.
Part No.
Description
No. Off
TURN SIGNAL FLASHERS
Flasher Unit
1
Bracket,
mounting flasher unit
1
HARDWARE,
securing bracket to bulkhead end panel
on passenger's side of car
Screw,
self-tapping
1
Washer,
plain
1
Clip,
spire, fitted to slot in bulkhead end panel
1
HAZARD FLASHERS,
fitted to models with left-hand steering
Flasher Unit
, fitted up to comm. no. CC75000
1
Flasher Unit
, fitted after comm. no. CC75000
1
Bracket,
mounting flasher unit
1
HARDWARE,
securing bracket to L.H. inner front fender
beside fuse box
Screw,
set
1
Washer,
lock
1
Washer,
plain
1
BUZZERS AND CONTROL UNITS,
seat belts and ignition
interlock, U.S.A. models
153966
Buzzer,
ignition warning, fitted from comm. no.
1
CC50000 up to CC75000
Buzzer,
ignition and seat belt warning, fitted from
1
comm. no. CC75000 up to CF12500
TKC734
Control Unit,
seat belt interlock and ignition warning,
1
fitted from comm. no. CF12500 up to CF36177
TKC2693
Control Unit,
seat belt interlock and ignition warning,
1
fitted from comm. no. CF36177 up to CF50000
AAU110
Control Unit,
seat belt and ignition warning, fitted after
1
comm. no. CF50000
Anti Run-On Valve and Switch Assembly;
part of pollution
1
control system, fitted to U.S.A. models after comm. no.
CF1 (See Section BH for related details.)
TERMINAL BLOCK
Terminal Block,
fitted up to 1971
1
Plate No.
Part No.
Description
No. Off
