V2-46
TRIUMPH TR6

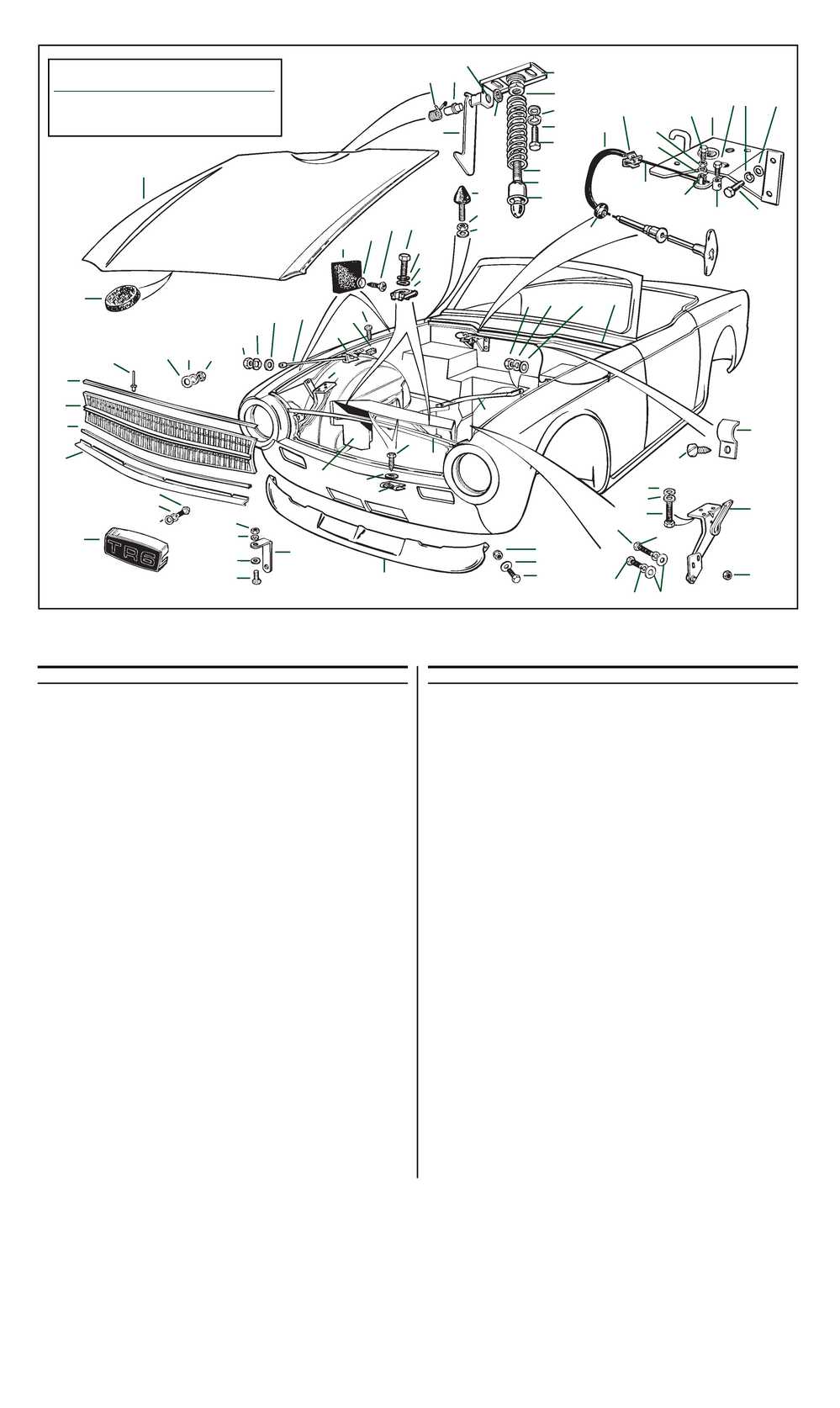

PLATE FD
RADIATOR GRILLE, BONNET,
AND FITTINGS
RADIATOR GRILLE, BONNET, AND FITTINGS
BONNET DETAILS
--Continued
BONNET LOCATING DETAILS
Pin,
bonnet locating
2
HARDWARE,
securing bonnet locating pins to inner
front fenders
Nut,
jam
4
Washer,
plain
4
Buffer,
rubber, bonnet locating, fitted up to
4
comm. no. CF12500
Buffer,
rubber, bonnet locating, fitted after
4
comm. no. CF12500
HARDWARE,
securing rubber buffers to body (The
factory also used a little cement to keep the
buffers flat.)
Screw,
self-tapping
8
Washer,
cup
8
617034
Pad,
packing, between bonnet and thermostat housing
1
BONNET LATCHING DETAILS
BONNET FASTENER ASSEMBLY,
with safety hook
1
611619
Bracket,
mounting
1
SAFETY HOOK DETAILS
619582
Hook,
safety
1
619581
Bracket,
hook (Spot-welded to mounting bracket.)
1
619584
Rivet,
securing hook to hook bracket
1
619583
Spring,
hook return
1
505764
Washer,
on rivet
1
Pin,
striker
1
611624
Spring
1
611623
Cup,
spring retaining
1
Nut,
lock
1
HARDWARE,
securing bonnet fastener assembly
to bonnet
Screw,
set
2
Washer,
lock
2
Washer,
plain
2
BONNET FASTENER CATCH PLATE AND STRIKER
1
BAR ASSEMBL
Y
611626
CATCH LEVER ASSEMBLY
1
Screw,
set, securing bonnet release cable
1
Washer,
plain
1
Nut
1
HARDWARE,
securing catch plate and striker
assembly to bulkhead
Screw,
set
4
Washer,
lock
4
Washer,
plain
4
Plate No.
Part No.
Description
No. Off
BONNET DETAILS--
BONNET LATCHING DETAILS
--Continued
BONNET RELEASE CABLE DETAILS
Bonnet Release Cable Assembly,
inner, with handle
1
Bonnet Release Cable Assembly,
outer
1
Grommet,
rubber, bulkhead, bonnet release cable
1
Clip,
bonnet release cable
1
HARDWARE,
additional, securing inner bonnet
release cable to catch lever
Fitting,
trunnion
1
Screw,
set
1
HARDWARE AND FITTINGS,
securing bonnet
release cable to bulkhead, cars with L.H.S.
Clip
2
Screw,
self-tapping
2
HARDWARE AND FITTINGS,
securing bonnet
release cable to bulkhead, cars with R.H.S.
149059
Clip
2
Screw,
self-tapping
2
BONNET SEALING DETAILS
Seal,
rubber, bonnet, front
1
Seal,
rubber, bonnet, rear
1
RUBBER PROTECTION MOULDINGS
(German
market only.)
ZKC1282
Moulding,
protection, grille center bar
1
624244
Moulding,
protection, bonnet side
2
632991
Moulding,
protection, bonnet rear
1
Plate No.
Part No.
Description
No. Off
