TRIUMPH TR6
PLATE FG
WINDSCREEN, INTERIOR MIRROR,
SUN VISORS
V2-50

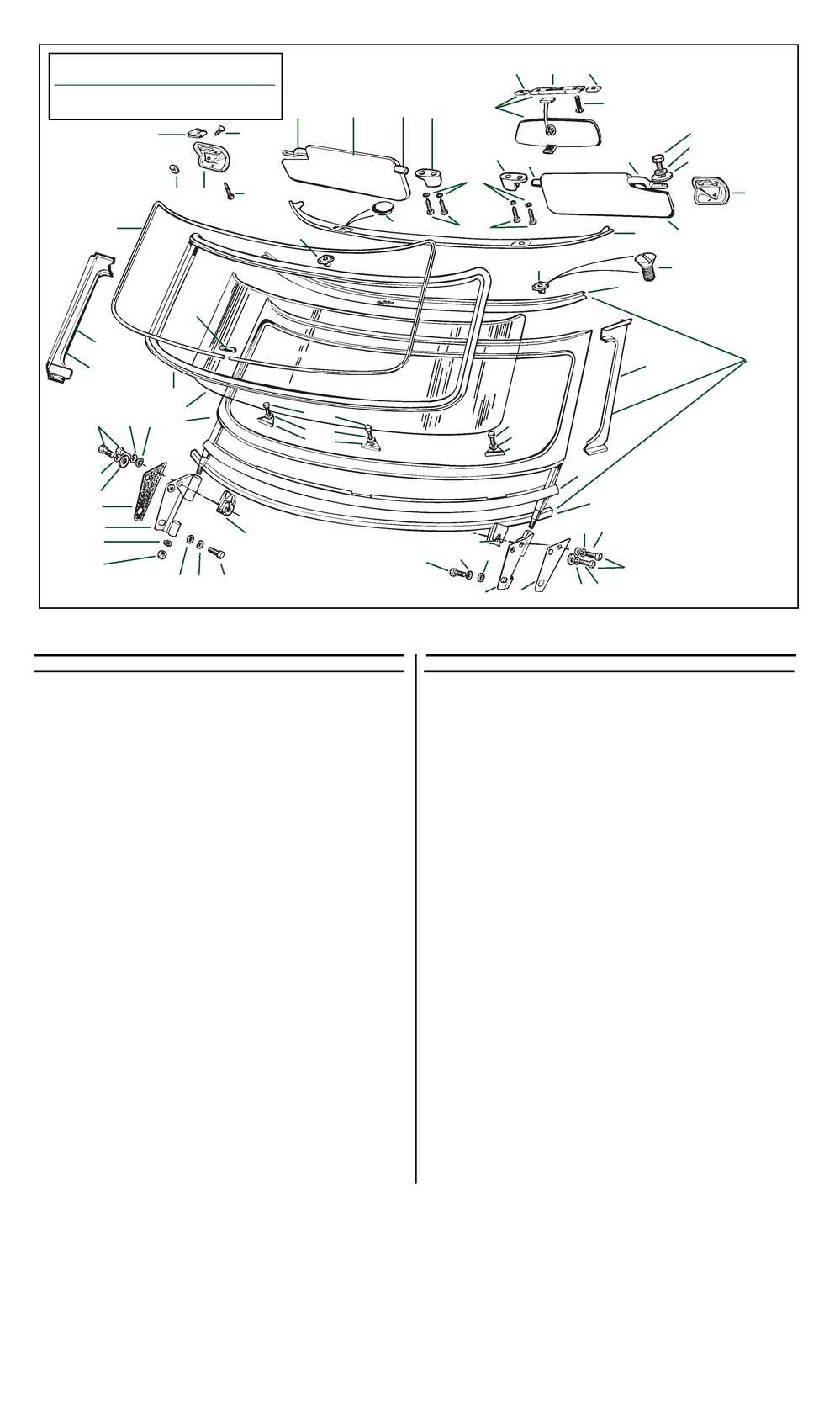

WINDSCREEN, INTERIOR MIRROR, SUN VISORS
WINDSCREEN DETAILS
714771
Windscreen Frame Assembly
1
623434
Plate,
catch, soft top latch, L.H.
1
623435
Plate,
catch, soft top latch, R.H.
1
Screw,
set, securing catch plates to windscreen frame
4
906707/XXX
Glass,
windscreen, clear, laminated, high impact
1
(Original Triplex brand.)
Glass,
windscreen, clear, laminated, high impact
1
(Available aftermarket brand.)
Glass,
windscreen, lightly tinted, laminated, high
1
impact (Available aftermarket brand.)
Rubber,
glazing, fitted up to commission no. CC52006
1
and CP50708
Rubber,
glazing, fitted after commission no. CC52006
1
and CP50708
Moulding,
finisher, chromed plastic
1
Clip,
finisher, moulding
1
WINDSCREEN MOUNTING DETAILS
750157
Mounting Bracket Assembly,
L.H., windscreen support
1
750158
Mounting Bracket Assembly,
R.H., windscreen support
1
Packing,
fibre, mounting brackets
2
HARDWARE,
securing mounting brackets to front
door posts
LOWER FITTINGS
Washer,
plain
2
Screw,
set
2
Washer,
lock
2
UPPER FIXINGS
Screw,
set
4
Washer,
lock
4
Washer,
plain, on forward bolt
2
Washer,
plain, on rearward bolt
2
Nut,
retainer
2
Rubber Seal,
between windscreen frame and
1
scuttle panel (dash)
HARDWARE,
securing windscreen assembly to
mounting brackets
Nut,
nyloc
2
Washer,
plain, under nuts; note that it may be
A/R
possible that more than one washer may be
required under each nut.
COVER PLATES AND ATTACHMENT HARDWARE KIT,
1
securing windscreen to dash
Cover Plate,
black
3
Bolt,
domed, black
3
Washer,
plain, black
3
Plate No.
Part No.
Description
No. Off
WINDSCREEN DETAILS
--Continued
WINDSCREEN FRAME TRIM FINISHER KIT,
black,
1
vacuum formed vinyl, includes all four trim pieces
listed below
622841
Finisher,
trim, L.H. side
NSS
622851
Finisher,
trim, R.H. side
NSS
622861
Finisher,
trim, lower
NSS
622871
Finisher,
trim, upper
NSS
WINDSCREEN CAPPING DETAILS
Capping,
windscreen
1
Plug,
rubber, windscreen capping, soft top models
2
only, fitted up to comm.no. CF12500/CR5000
Plug,
rubber, windscreen capping, soft top models
2
only, fitted after comm. no. CF12500/CR5000
INTERIOR MIRROR DETAILS
INTERIOR MIRROR ASSEMBLY
1
BREAKAWAY MIRROR BRACKET ASSEMBLY
1
Base,
breakaway
1
Retainer,
positioning mirror in base
2
Screw,
set, securing mirror assembly to windscreen frame
2
SUN VISOR DETAILS
SUN VISOR KIT
, all models with left-hand steering
1
RFK486
SUN VISOR KIT
, all models with right-hand steering
1
Sun Visor,
driver's side, black
1
Sun Visor,
passenger's side, cars with left-hand steering
1
XKC2948PA
Sun Visor,
passenger's side, cars with right-hand
1
steering
SUN VISOR MOUNTING DETAILS
Bar,
mounting, inner
2
Bar,
mounting, outer, L.H.
1
Bar,
mounting, outer, R.H.
1
Bracket,
mounting, L.H.
1
Bracket,
mounting, R.H.
1
HARDWARE,
securing outer mounting bars to brackets
Screw,
set
2
Washer,
plain, next to bolt head
2
Washer,
plain
2
Retainer,
rubber, inner mounting
2
HARDWARE,
securing retainers to windscreen
Screw,
self-tapping
4
Washer,
plain
4
HARDWARE,
securing sun visor assemblies
(Mounting brackets) to windscreen frame
Screw,
self-tapping
2
Screw,
self-tapping
4
Nut,
fix
2
Nut,
fix
1
Plate No.
Part No.
Description
No. Off
