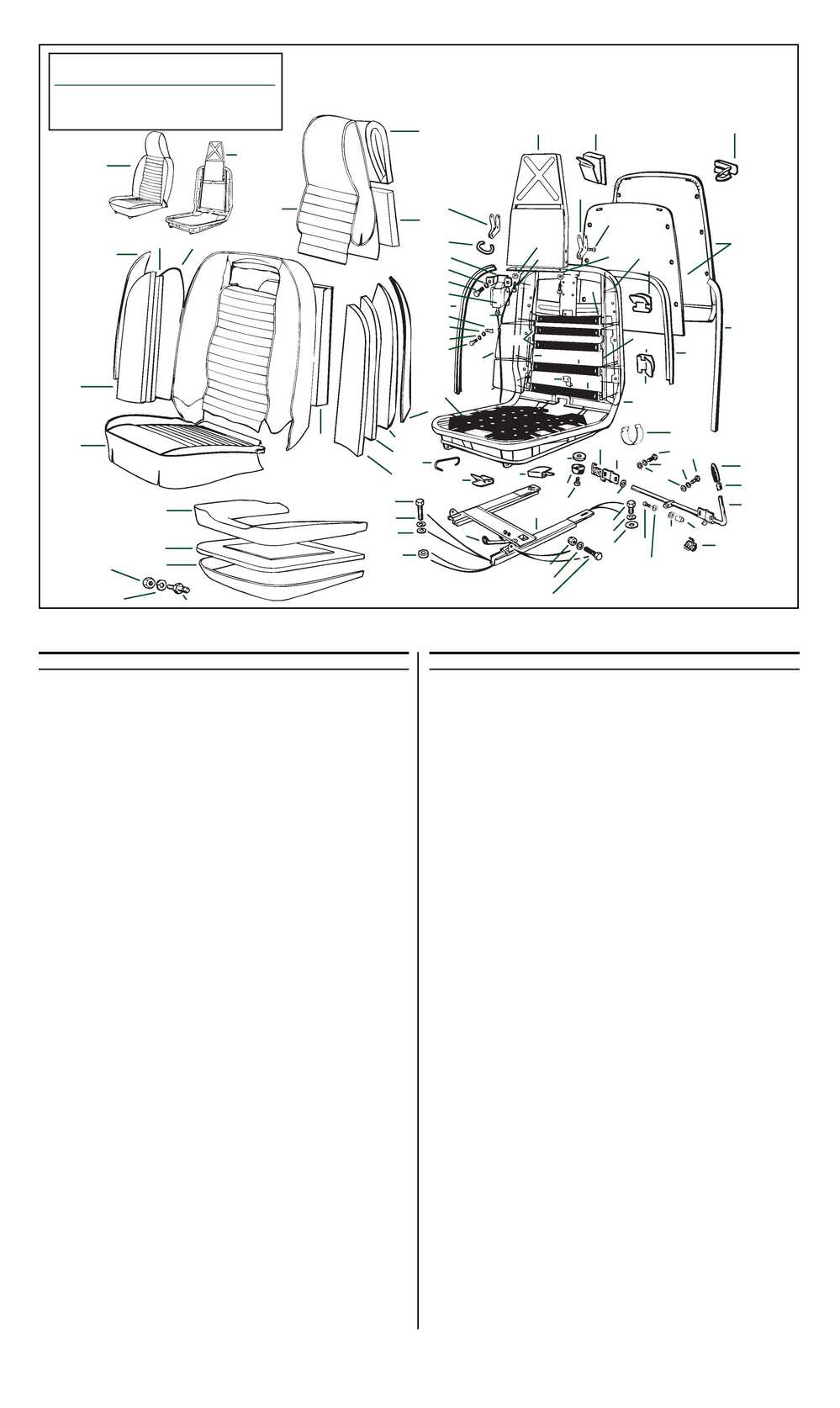

SEATS--U.S.A. MODELS, 1969 (UP TO COMM. NO. CC50000)
COMPONENTS FOR SEAT REBUILDING
--Continued
SEAT FRAME DETAILS
--Continued
SEAT-BACK SUPPORT WIRES,
L.H. seat
GF51
815665
Vertical Wire,
inner
1
GF52
815654
Lower Wire,
inner
1
GF53
815652
Center Wire,
inner
1
GF54
815663
Upper Wire Assembly,
inner
1
GF55
815508
Vertical Wire,
outer
1
GF56
815687
Lower Wire,
outer
1
GF57
815685
Center Wire,
outer
1
GF58
815506
Upper Wire Assembly,
outer
1
SEAT-BACK SUPPORT WIRES,
R.H. seat
815666
Vertical Wire,
inner
1
815655
Lower Wire,
inner
1
815653
Center Wire,
inner
1
815664
Upper Wire Assembly,
inner
1
815509
Vertical Wire,
outer
1
815688
Lower Wire,
outer
1
815686
Center Wire,
outer
1
815507
Upper Wire Assembly,
outer
1
RUBBER SEAT SUSPENSION DETAILS
GF59
DIAPHRAGM,
rubber, seat bottom
2
GF60
Hook,
securing rubber diaphragms to seat frames
20
STRAP KIT,
seat back; includes straps, hooks, attachments
2
GF61
621059
STRAP ASSEMBLY,
top
2
GF62
621060
STRAP ASSEMBLY,
second and third from top
4
GF63
621057
STRAP ASSEMBLY,
second from bottom
2
GF64
621056
STRAP ASSEMBLY,
bottom
2
621340
Hook,
securing rubber straps
20
SEAT PADDING KIT,
including a full set of foam pads
1
and related components for both seats
PADDING COMPONENTS,
seat bottom cushions
1
GF65
821497
Pad,
seat bottom cushion
2
GF66
821496
Edge Roll,
seat bottom cushion
2
GF67
920060
Pad,
border, seat bottom cushion
2
PADDING COMPONENTS,
seat back, L.H. seat
GF68
717000
Pad,
center, seat back
1
GF69
815831
Cover,
hessian (burlap material), seat-back
2
support wires; secured to wires with hog rings
GF70
716933
Strip,
felt, padding edges of support wires
2
GF71
716639
Pad,
rubberized hair, front sides of seat
2
GF72
716998
Pad,
foam, L.H. side of seat, on top of hair pad
1
GF73
716999
Pad,
foam, R.H. side of seat, on top of hair pad
1
GF74
716560
Pad,
foam, outside edges of seat sides; secured to
2
hessian with trim adhesive
GF75
910086
Roll Pad,
foam, outside edges of seat
1
PADDING COMPONENTS,
seat back, R.H. seat
717000
Pad,
center, seat back
1
815831
Cover,
hessian (burlap material), seat-back support
2
wires; secured to wires with hog rings
716933
Strip,
felt, padding edges of support wires
2
716639
Pad,
rubberized hair, front sides of seat
2
716637
Pad,
foam, L.H. side of seat, on top of hair pad
1
716638
Pad,
foam, R.H. side of seat, on top of hair pad
1
716560
Pad,
foam, outside edges of seat sides; secured to
2
hessian with trim adhesive
910087
Roll Pad,
foam, outside edges of seat
1
PADDING COMPONENTS,
head-restraints
GF76
815770
Pad,
foam, upper
2
GF77
815771
Pad,
foam, lower
2
Plate No.
Part No.
Description
No. Off
TRIUMPH TR6
PLATE GF
SEATS-U.S.A. MODELS, 1969
(UP TO COMM. NO. CC50000)
COMPONENTS FOR SEAT REBUILDING
--Continued
SEAT REUPHOLSTERY KITS,
vinyl trim, including cover
assemblies for seat-bottom cushions, seat backs,
and head-restraints, plus backboard assemblies
and head-restraint pocket boards; factory colours
and materials with embossed diamond pattern
where applicable; one kit does both seats
Seat Reupholstery Kit,
black, vinyl trim
1
Seat Reupholstery Kit,
matador red, vinyl trim
1
Seat Reupholstery Kit,
light tan, vinyl trim
1
Seat Reupholstery Kit,
shadow blue, vinyl trim
1
SEAT REUPHOLSTERY KITS,
leather trim, including cover
assemblies for seat-bottom cushions, seat backs,
and head-restraints, plus backboard assemblies
and head-restraint pocket boards; factory colours
and materials with embossed diamond pattern
where applicable; one kit does both seats
SRKL61/BLK
Seat Reupholstery Kit,
black, leather trim
1
SRKL61/RED
Seat Reupholstery Kit,
matador red, leather trim
1
Seat Reupholstery Kit,
light tan, leather trim
1
SRKL61/BLU
Seat Reupholstery Kit,
shadow blue, leather trim
1
RFK934
HARDWARE KIT,
for use in installing seat padding kit
1
and seat reupholstery kit
Clip,
trim, securing border of seat cushion covers to
18
bottom edge of seat frame
Clip,
tubular, securing seat back covers to seat
8
frame tubes under seats
Hog Ring,
securing hessian covers to seat-back
60
support wires
613769
Clip,
trim, securing seat back-board to seat frame
12
613770
Clip,
trim, securing tops of seat back-boards to
4
seat frame
Clip,
trim, securing piping strips from tops of
4
center seat trim to inside rails of seat frame
Clip,
trim, securing strips from fabric inner structure of
20
center seat trim to backs of inside rails of seat frame
Clip,
trim, securing edges of head-restraint cover to
10
head-restraint frame
Plate No.
Part No.
Description
No. Off
