TRIUMPH TR6

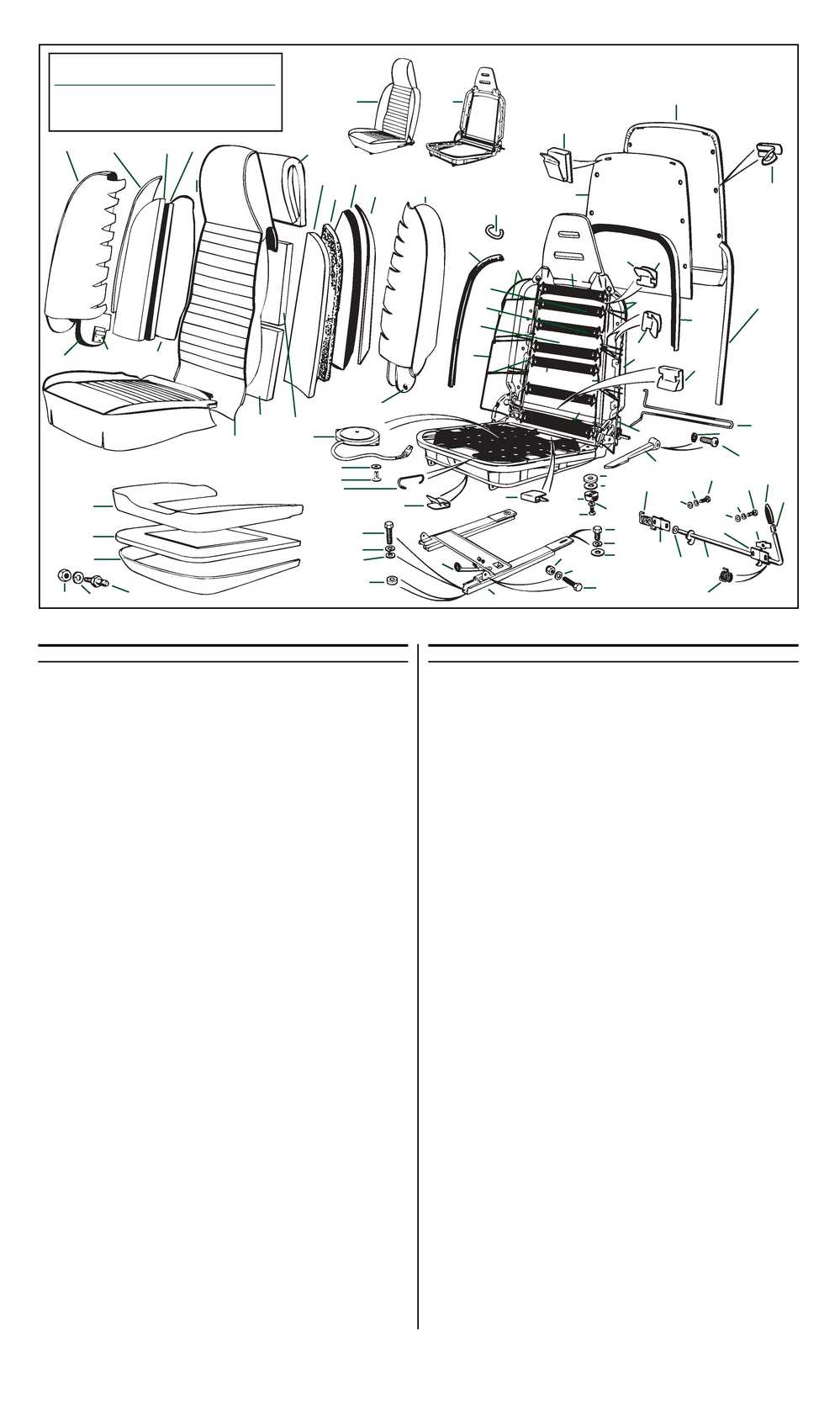

PLATE GH
SEATS-U.S.A.-TYPE MARKETS, 1970
UP TO 1972 (FROM COMM.NO.
CC50000 UP TO CF1)
V2-80
Plate No.
Part No.
Description
No. Off
Plate No.
Part No.
Description
No. Off
Please Note:
All colours listed in this section except
new tan
were introduced at initial production.
New Tan
was introduced
after the first five-hundred trim sets, and
light tan
was
dropped from production after the first five-hundred sets.
COMPLETE SEAT ASSEMBLIES,
L.H., vinyl trim, fitted from
comm. no. CC50000 up to CF1
912191
Seat Assembly,
black, vinyl trim, L.H.
1
912192
Seat Assembly,
red, vinyl trim, L.H.
1
576629
Seat Assembly,
light tan, vinyl trim, L.H.
1
912193
Seat Assembly,
new tan (peanut brittle), vinyl trim, L.H.
1
912197
Seat Assembly,
shadow blue, vinyl trim, L.H.
1
COMPLETE SEAT ASSEMBLIES,
L.H., leather trim, fitted from
comm. no. CC50000 up to CF1
912211
Seat Assembly,
black, leather trim, L.H.
1
912212
Seat Assembly,
red, leather trim, L.H.
1
576630
Seat Assembly,
light tan, leather trim, L.H.
1
912213
Seat Assembly,
new tan (peanut brittle), leather trim, L.H.
1
912217
Seat Assembly,
shadow blue, leather trim, L.H.
1
COMPLETE SEAT ASSEMBLIES,
R.H., vinyl trim, fitted from
comm. no. CC50000 up to CC75000, without
seat sensor switches
912201
Seat Assembly,
black, vinyl trim, R.H.
1
912202
Seat Assembly,
red, vinyl trim, R.H.
1
576631
Seat Assembly,
light tan, vinyl trim, R.H.
1
912203
Seat Assembly,
new tan, vinyl trim, R.H.
1
912207
Seat Assembly,
shadow blue, vinyl trim, R.H.
1
COMPLETE SEAT ASSEMBLIES,
R.H., leather trim, fitted from
comm. no. CC50000 up to CC75000, without seat sensor
switches
912221
Seat Assembly,
black, leather trim, R.H.
1
912222
Seat Assembly,
red, leather trim, R.H.
1
576632
Seat Assembly,
light tan, leather trim, R.H.
1
912223
Seat Assembly,
new tan (peanut brittle), leather trim, R.H.
1
912227
Seat Assembly,
shadow blue, leather trim, R.H.
1
COMPLETE SEAT ASSEMBLIES,
R.H., vinyl trim, fitted from
comm. no. CC75000 up to CF1, with seat sensor switches
Please Note:
From comm. no. CC75000 up to CF1, a
seat sensor switch was fitted to the passenger's seat
but not to the driver's seat.
917421
Seat Assembly,
black, vinyl trim, R.H.
1
917422
Seat Assembly,
red, vinyl trim, R.H.
1
917423
Seat Assembly,
new tan (peanut brittle), vinyl trim, R.H.
1
917427
Seat Assembly,
shadow blue, vinyl trim, R.H.
1
COMPLETE SEAT ASSEMBLIES,
R.H., leather trim, fitted
from comm. no. CC75000 up to CF1, with seat sensor switches
Please Note:
From comm. no. CC75000 up to CF1, a
seat sensor switch was fitted to the passenger's seat
but not to the driver's seat.
917431
Seat Assembly,
black, leather trim, R.H.
1
917432
Seat Assembly,
red, leather trim, R.H.
1
917433
Seat Assembly,
new tan (peanut brittle), leather trim, R.H.
1
917437
Seat Assembly,
shadow blue, leather trim, R.H.
1
SEAT-SLIDE DETAILS
SEAT-SLIDE ASSEMBLY,
L.H.
1
SEAT-SLIDE ASSEMBLY,
R.H.
1
Cover,
rubber, adjustment handle
2
HARDWARE,
securing catch plates to seat slides
502449
Screw,
set
4
Washer,
lock
4
516555
Washer,
plain
4
SEAT-SLIDE DETAILS--Continued
HARDWARE KIT,
securing seat slides to floors of body
1
shell and to seats
HARDWARE,
securing seat slides to floors of body shell
Screw,
set
8
Washer,
lock
8
Washer,
plain
8
Washer,
plain, spacing, between seat slides
8
and floors
HARDWARE,
securing seat slides to seats
Screw,
set
4
Washer,
plain
4
Nut,
nyloc
4
COMPONENTS FOR SEAT REBUILDING
SEAT FRAME DETAILS
911568
Frame Assembly,
seat, L.H.
1
911569
Frame Assembly,
seat, R.H.
1
576161
Torsion Bar,
seat back return, L.H.
1
576162
Torsion Bar,
seat back return, R.H.
1
Handle,
angle control, seat back
2
HARDWARE,
securing handles to seat-angle
control shafts
Screw
2
Washer,
lock
2
SAFETY-CATCH DETAILS
720164
Control Rod,
safety catch, L.H.
1
720165
Control Rod,
safety catch, R.H.
1
621458
Knob,
control rods
2
Clip,
retaining knobs
2
555285
Washer,
plain, between control rods and pivot
4
brackets
621960
Bracket
Assembly, pivot, control rods
4
621981
Spring,
return, control rod, L.H.
2
621982
Spring,
return, control rod, R.H.
2
629588
Stop Plate,
safety catch, two each fitted under one
4
bracket-mounting screw on each seat to limit
travel of control rods
HARDWARE,
securing pivot brackets and stop plates
to seat frames
Screw,
set, securing pivot brackets
6
Screw,
set, securing pivot brackets and stop plates
2
Washer,
lock
8
Washer,
plain
8
Buffer,
rubber, between seat frames and seat rails
4
HARDWARE,
securing buffers to seat frames
Screw,
set
4
Washer,
plain, under heads of screws
4
Washer,
plain, between buffers and seat frames
4
Washer,
plain, between buffers and seat frames
4
SEAT-BACK SUPPORT WIRES
L.H. SEAT
816072
Vertical Wire,
inner
1
816070
Lower Wire,
inner
1
815652
Center Wire,
inner
1
815650
Upper Wire Assembly,
inner
1
816079
Vertical Wire,
outer
1
816077
Lower Wire,
outer
1
815685
Center Wire,
outer
1
815683
Upper Wire Assembly,
outer
1
(Continued on next page.)
SEATS--U.S.A.-TYPE MARKETS, 1970 UP TO 1972 (FROM COMM. NO. CC50000 UP TO CF1)
