V2-82

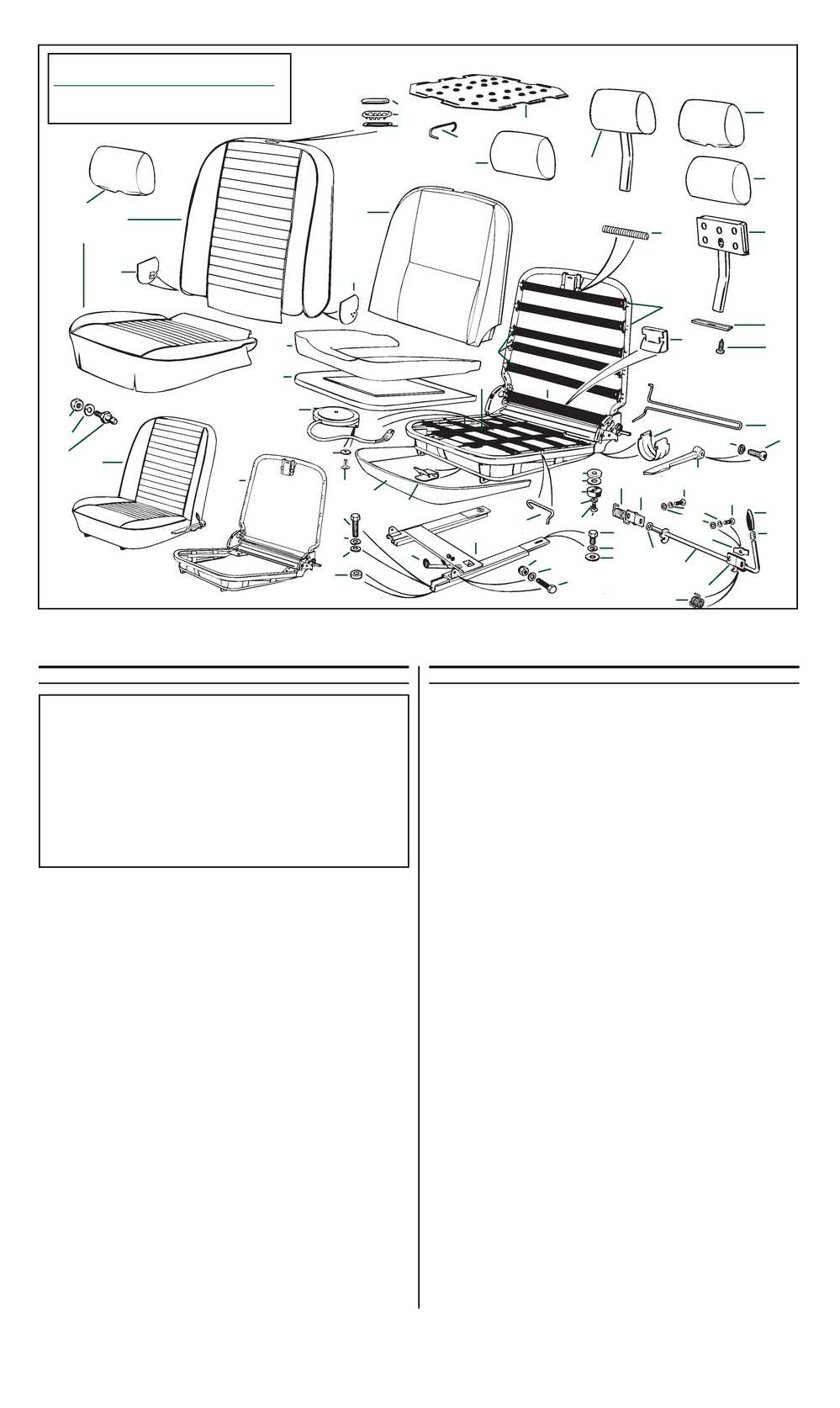

TRIUMPH TR6
PLATE GJ
SEATS-ALL MARKETS, 1973 UP TO 1976
(AFTER COMM. NO. CF/CR1)
INCLUDES
L.H. AND R.H
SEATS--ALL MARKETS, 1973 UP TO 1976 (AFTER COMM. NO. CF/CR1)
COMPLETE SEAT ASSEMBLIES,
L.H., without head-restraints,
fitted after comm. no. CF1/CR1
919011
Seat Assembly,
black, vinyl trim, L.H.
1
923023
Seat Assembly,
new tan (peanut brittle), vinyl trim, L.H.
1
919014
Seat Assembly,
beige (light mottled tan), vinyl trim, L.H.
1
919023
Seat Assembly,
chestnut (dark reddish brown), vinyl
1
trim, L.H.
919027
Seat Assembly,
shadow blue, vinyl trim, L.H.
1
COMPLETE SEAT ASSEMBLIES,
R.H., without head-restraints,
fitted after commission no. CF/CR1
919021
Seat Assembly,
black, vinyl trim, R.H.
1
923033
Seat Assembly,
new tan (peanut brittle), vinyl trim, R.H.
1
919024
Seat Assembly,
beige (light mottled tan), vinyl trim, R.H.
1
919033
Seat Assembly,
chestnut (dark reddish brown), vinyl
1
trim, R.H.
919037
Seat Assembly,
shadow blue, vinyl trim, R.H.
1
COMPLETE SEAT ASSEMBLIES,
L.H., with head-restraints,
fitted after comm. no. CF/CR1
918951
Seat Assembly,
black, vinyl trim, L.H.
1
922963
Seat Assembly,
new tan (peanut brittle), vinyl trim, L.H.
1
918954
Seat Assembly,
beige (light mottled tan) vinyl trim, L.H.
1
918953
Seat Assembly,
chestnut (dark reddish brown), vinyl
1
trim, L.H.
918957
Seat Assembly,
shadow blue, vinyl trim, L.H.
1
COMPLETE SEAT ASSEMBLIES,
R.H., with head-restraints,
fitted after comm. no. CF/CR1
918961
Seat Assembly,
black, vinyl trim, R.H.
1
922973
Seat Assembly,
new tan (peanut brittle), vinyl trim, R.H.
1
918964
Seat Assembly,
beige (light mottled tan), vinyl trim, R.H.
1
918963
Seat Assembly,
chestnut (dark reddish brown), vinyl
1
trim, R.H.
918967
Seat Assembly,
shadow blue, vinyl trim, R.H.
1
SEAT-SLIDE DETAILS
SEAT-SLIDE ASSEMBLY,
L.H.
1
SEAT-SLIDE ASSEMBLY,
R.H.
1
Cover,
rubber, adjustment handle
2
HARDWARE,
securing catch plates to seat slides
502449
Screw,
set
4
Washer,
lock
4
516555
Washer,
plain
4
Plate No.
Part No.
Description
No. Off
SEAT-SLIDE DETAILS--Continued
HARDWARE KIT,
securing seat slides to floors of body
1
shells and to seats
HARDWARE,
securing seat slides to floors of body shell
Screw,
set
8
Washer,
lock
8
Washer,
plain
8
Washer,
plain, spacing, between seat slides and floors
8
HARDWARE,
securing seat slides to seats
1
Screw,
set
4
Washer,
plain
8
Nut,
nyloc
4
COMPONENTS FOR SEAT REBUILDING
SEAT-FRAME DETAILS
917593
Frame Assembly,
seat, L.H.
1
917594
Frame Assembly,
seat, R.H.
1
CZA4713
Spring,
fitted in head-restraint bracket, up to 1975
2
approx.
Linen Tape,
black, one inch by eight inches,
retaining springs (You can use duct tape.)
2
ZKC1271
Friction Roller,
fitted in head-restraint bracket,
2
after 1974 approx.
576161
Torsion Bar,
seat back return, L.H.
1
576162
Torsion Bar,
seat back return, R.H.
1
Handle,
angle control, seat back
2
HARDWARE,
securing handles to seat-angle
control shafts
Screw
2
Washer,
lock
2
SAFETY-CATCH DETAILS
720164
Control Rod,
safety catch, L.H.
1
720165
Control Rod,
safety catch, R.H.
1
621458
Knob,
control rod
2
Clip,
retaining knobs
2
503661
Washer,
plain between control rods and pivot
4
brackets
621960
Bracket
Assembly, pivot, control rods
4
621981
Spring,
return, control rod, L.H.
2
621982
Spring,
return, control rod, R.H.
2
629588
Stop Plate,
safety catch, two each fitted under one
4
bracket-mounting screw on each seat to limit
travel of control rods
HARDWARE,
securing pivot brackets and stop
plates to seat frames
Screw,
set, securing pivot brackets
6
Screw,
set, securing pivot brackets and stop
2
plates
Washer,
lock
8
Washer,
plain
8
Buffer,
rubber, between seat frames and seat rails
4
HARDWARE,
securing buffers to seat frames
Screw,
set
4
Washer,
plain, under heads of screws
4
Washer,
plain, between buffers and seat frames
4
Washer,
plain, between buffers and seat frames
4
(Continued on next page.)
Plate No.
Part No.
Description
No. Off
Please Note:
To comply with ever changing safety legislation in the mid-1970's,
Triumph was forced to change seat-belt interlock features, including electrical details such
as seat-sensor switches, at the beginning of each successive model year from 1973 up to
1976. The result is that the part numbers for seats vary according to whether or not they
contain seat-sensor switches, and for some model years, the sensor switch is located in
the L.H. seat, and for others, it is located in the R.H. seat. For yet another model year,
both seats may contain the switches. This point may be considered moot anyway, as no
complete seat assemblies are available at the time of writing. However, we do not rule
out the possibility that we may be able to supply complete seat assemblies at some
future date. Nonetheless, we are listing only one part number for each separate seat
based upon the colour of the seat and the side of the car to which it may be fitted. Each
of these, now theoretical, seats may be assumed to contain a seat sensor switch which
may be used or not used according to the requirements of the specific models to which a
replacement seat is to be fitted.
